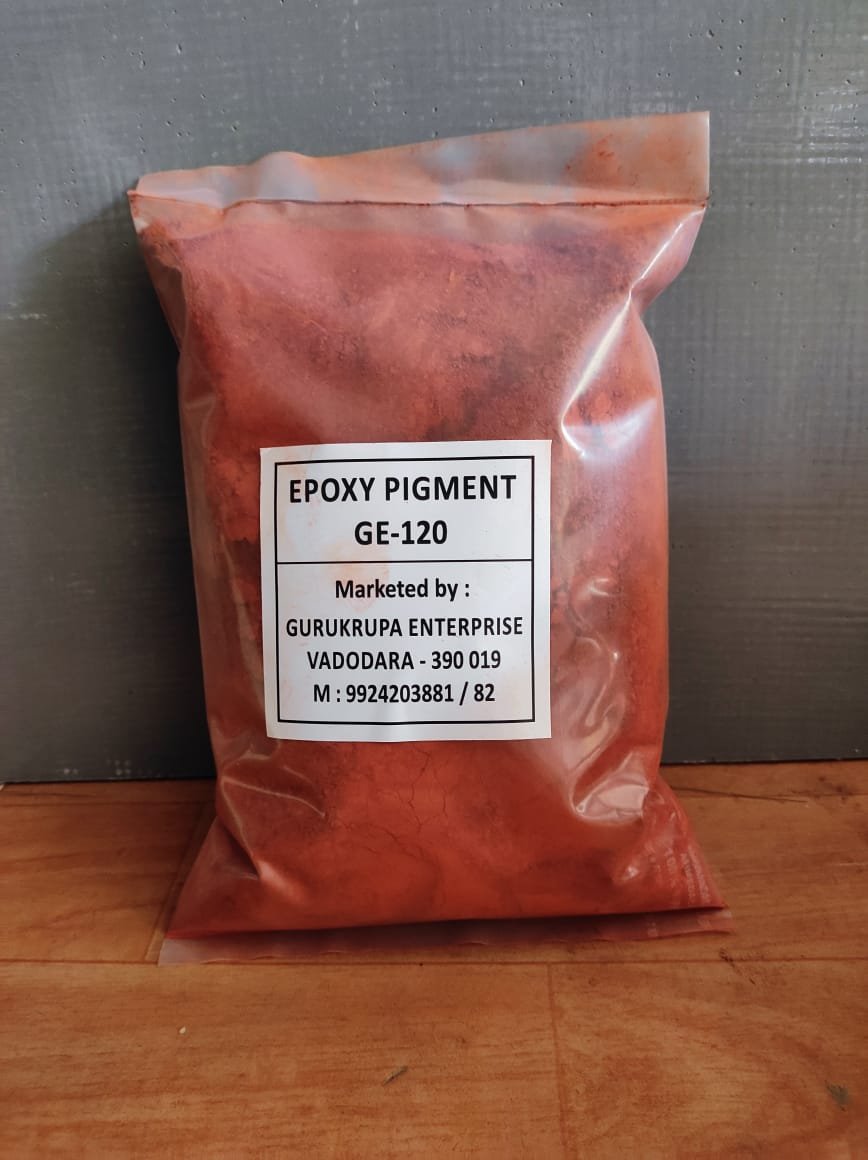

EPOXY PIGMENT
Epoxy Pigments in Transformers: Applications & Benefits
Epoxy pigments play a crucial role in transformer manufacturing, primarily used to color epoxy resins for insulation, encapsulation, and coating applications. These pigments help in distinguishing different components, improving aesthetics, and ensuring quality control while maintaining the high-performance properties of epoxy resin.
Why Use Epoxy Pigments in Transformers?
Transformers require high-strength insulation materials that can withstand electrical, thermal, and environmental stress. Pigmented epoxy resins offer:
✅ Visual Identification – Different colors help in identifying parts and phases in transformer windings.
✅ UV & Heat Resistance – Prevents discoloration and degradation over time.
✅ No Impact on Insulating Properties – Pigments are specially formulated to maintain high dielectric strength.
✅ Chemical & Moisture Resistance – Enhances the longevity of insulation coatings.
Types of Epoxy Pigments Used in Transformers
1️⃣ Liquid Epoxy Pigments
- Provides even color distribution in resin.
- Commonly used for coil and bushing encapsulation.
2️⃣ Powder-Based Pigments (Mica & Metallic)
- Used for enhancing heat dissipation in resin formulations.
- Offers metallic or pearlescent effects for industrial-grade insulation coatings.
3️⃣ Opaque & Transparent Pigments
- Opaque pigments provide solid color for complete insulation visibility.
- Transparent pigments allow UV detection in certain resin applications.
Applications of Epoxy Pigments in Transformers
🔹 Encapsulation of Coils & Windings – Colored resins help identify different voltage levels.
🔹 Bushing & Insulator Coatings – Enhances the aesthetics and identification of insulated parts.
🔹 Phase Identification – Different colors are used for phase coding in electrical systems.
🔹 Core and Housing Protection – Adds durability and resistance to environmental factors.
Why Epoxy Resin is Used in Transformers?
Transformers generate heat and are exposed to electrical stress, moisture, and contaminants. Epoxy resin provides:
✅ High Dielectric Strength – Prevents electrical leakage and short circuits.
✅ Thermal Stability – Withstands high temperatures without degradation.
✅ Moisture Resistance – Protects against humidity and environmental factors.
✅ Mechanical Strength – Enhances durability and impact resistance.
